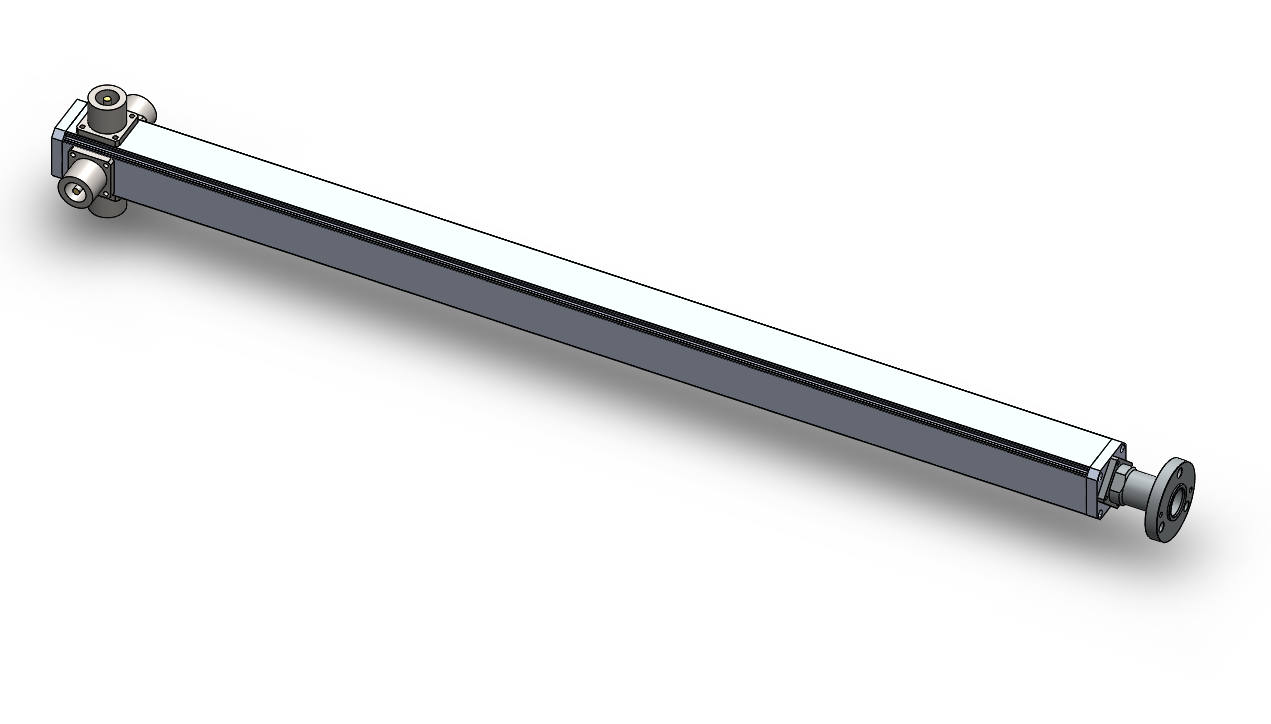

This is a power divider that can be combined into two antenna arrays. Power capacity up to 5kw.
Center frequency: segment selection 92MHz 98MHz 104MHz
Bandwidth: 8MHz

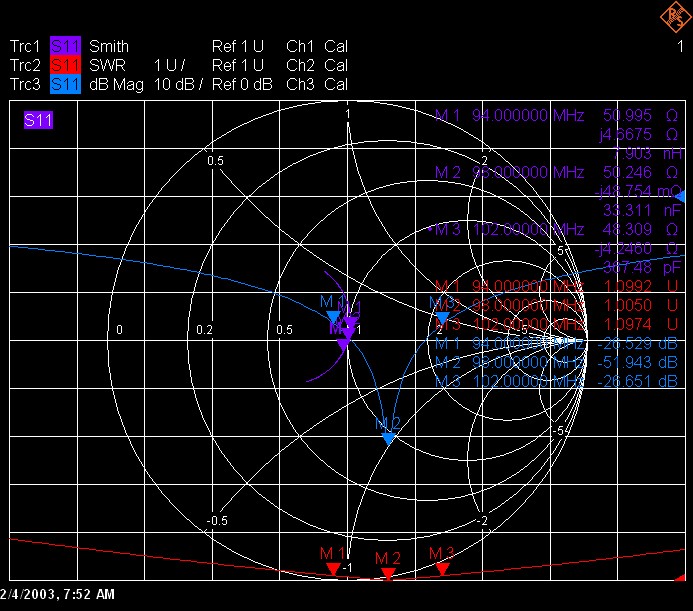

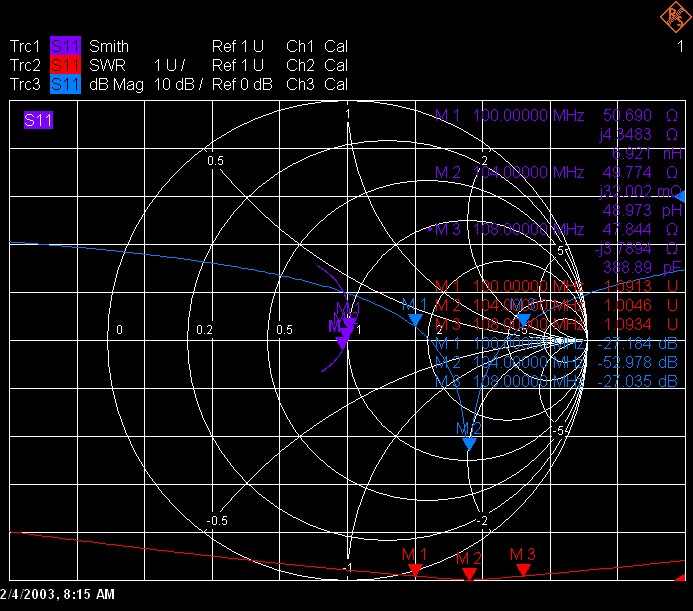

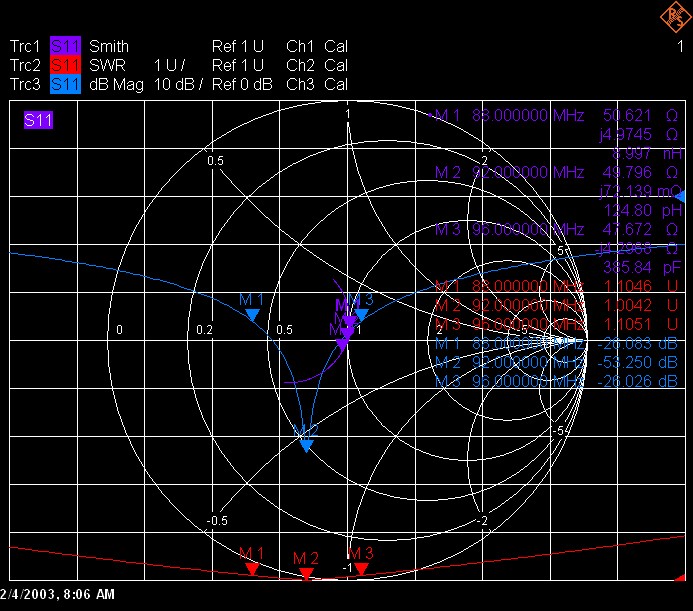

Input maximum standing wave ratio: ≤1.1
RF input power: ≤ 5000 W
RF input impedance: 50Ω
RF input connector: EIA 7/8 (IF45)
RF output connector: L29
Net Size：50 x 50 x 800mm (without measuring handles and protrusions),
Package Weight：5KG
